PROFITEST PRIME AC

Thank you

Item number: M506H

Test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6, machines and systems per IEC 60204-1, low-voltage switchgear and controlgear assemblies per DIN EN 61439-1, PV systems per DIN EN 62446-1 and electric charging stations per DIN EN 61851-1.

The PROFITEST PRIME AC is a test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6, machines and systems per IEC 60204-1, low-voltage switchgear and controlgear assemblies per IEC 61439-1, PV systems per DIN EN 62446-1 and electric charging stations per DIN EN 61851-1.

  • m506c-profitestprimeac_front_16150.jpg

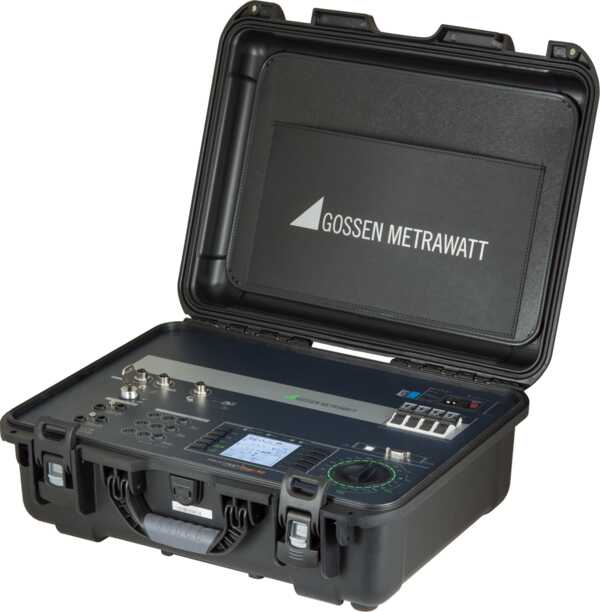

  • m506c-profitestprimeac_persp1_16149.jpg

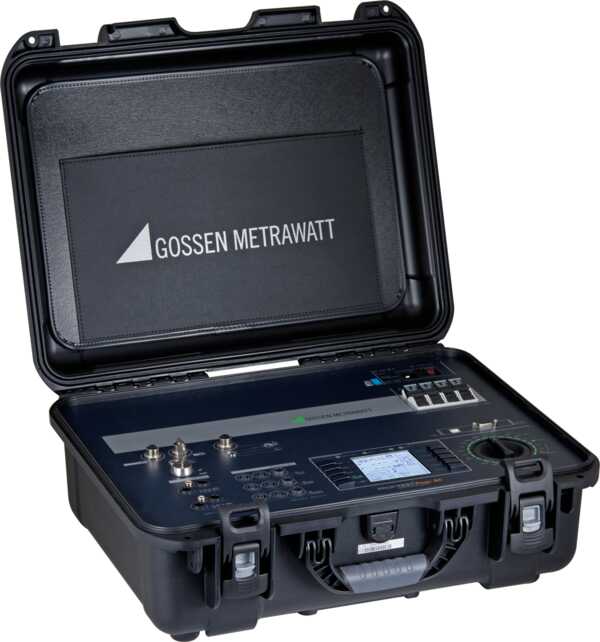

  • m506c-profitestprimeac_persp2_16153.jpg

The PROFITEST PRIME AC makes your investment decision easy because standards-compliant testing can be conducted on electrical installations per IEC 60364-6, on machines and systems per IEC 60204-1, on low-voltage switchgear and controlgear assemblies per IEC 61439-1, on PV systems per DIN EN 62446-1 and on electric charging stations per DIN EN 61851-1 with the accessories which are perfectly matched to the requirements.

Product Highlights

  • Measurement in AC/DC systems
  • Measurement of internal system resistance and fault loop resistance with high test current up to 690 V AC / 800 V DC without tripping RCD types A and B
  • Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, as well as automatic polarity reversal and 25 A
  • Testing of RCD types A, AC, F, B, B+, EV, MI and G/R, as well as SRCDs and PRCDs
  • Combined RCD test with continuously rising ramp, time to trip, tripping current
  • Insulation measurement up to 1000 V with rising ramp
  • Testing of RCMs and IMDs
  • Measurement of leakage and differential current
  • Measurement of temperature and humidity
  • Voltage measurement, 1000 V AC/DC
  • High-voltage testing: 2.5 kV AC, 500 VA, standard sequence, ramp function and pulse control mode
  • Work safety concept for the inspector in accordance with DIN EN 50191 and EN 61557-14 with indicator lamp, emergency stop switch and key switch
  • Mains and battery operation (with limited functionality)
  • Bluetooth and USB interfaces
  • Push-print function – transmission of the measured value after measurement

Your advantages

PROFITEST PRIME AC – versatile and future-proof

  • Intuitive operation
  • Efficient work
  • Standards-compliant testing
  • Legally secure documentation

PROFITEST PRIME AC – saves time and money

  • As single test instrument for a broad range of applications
  • All measurements without any bothersome replugging of the measurement cables
  • Interchangeable test tips on the measurement cables
  • Can be used all over the world thanks to language selection

PROFITEST PRIME AC – even 10 years down the road

  • Future-proof thanks to firmware updates
  • 10-year service guarantee
  • DAkkS certificate issued by own calibration laboratory
  • User support for questions about testing

PROFITEST PRIME AC – quick and easy report generation

  • Cascadable, future-proof software concept
  • Modern data management by means of customer and measurement data administration
  • Creation of system structures – from the system all the way down to the measuring points
  • Quick and easy generation of a legally secure report per ZVEH

PROFITEST PRIME AC – reliable measuring and testing

  • Easy operation with rotary switch
  • Predefined test sequences for structured testing
  • Coded plugs assure error-free testing
  • On-site help thanks to help function with wiring diagrams
  • Measuring category: 600 V CAT III / 300 V CAT IV
  • 4-wire measuring method – no compensation of the measurement cables is required

Applications

Standards-compliant testing of the effectiveness of protective measures in electrical installations per DIN VDE 0100-600, machines and systems per VDE 0113-1, low-voltage switchgear and controlgear assemblies per VDE 0660-600-1, PV systems per VDE 0126-23 and electric charging stations per VDE 0122-1.

  • Technical characteristics
    • Broad-range measuring device for all alternating and 3-phase electrical systems with voltages of up to 1000 V and frequencies of 15.4 to 420 Hz
    • Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, as well as automatic polarity reversal and 25 A
    • Insulation measurement up to 1000 V with rising ramp
    • Measurement of internal system resistance and fault loop resistance with high test current up to 690 V AC / 800 V DC without tripping RCD types A and B
    • Testing of RCD types A, AC, F, B, B+, EV, MI and G/R, as well as SRCDs and PRCDs
    • Combined RCD test with continuously rising ramp, time to trip, tripping current
    • Testing of RCMs and IMDs
    • Measurement of leakage and differential current
    • Measurement of temperature and humidity
    • Voltage measurement, 1000 V AC/DC
    • High-voltage testing: 2.5 kV AC, 500 VA, standard sequence, ramp function and pulse control mode
    • Mains and battery operation (with limited functionality)
    • Bluetooth and USB interfaces
    • Push-print function – transmission of the measured value after measurement
  • Particularities

    Innovative, global operating concept

    • Quick access to measuring and test functions via the rotary switch and softkeys

    User-friendly

    • No time-consuming replugging of the measurement cables is required – no measuring cable mix-ups thanks to coded plugs

    Modern data management

    • Comprehensive data management concept in combination with user software including customer and measurement data administration, test sequences, report generation and more

    Unique storage concept

    • Creation of system structures – customers, systems, machines, distributors, RCDs, IMDs, RCMs, electrical circuits, earth electrodes, equipotential bonding rails, operating equipment and individual measuring points

    Push-print function

    • Transmission of the measured value via Bluetooth/USB after measurement has been completed

    Test sequences

    • Preparation of individual test sequences for quick and reliable testing of machines and systems

    Universal interface

    • Bidirectional data exchange (USB), connection of a barcode scanner as well as temperature and humidity sensor (RS 232), Bluetooth/USB: push-print function

    Universal use

    • Measuring and testing made easy thanks to extensive accessories and integrated rechargeable battery

    Rugged housing

    • Compact, impact-resistant measuring case with trolley mount for easy transport
