MAVOLUX 5032B USB

Thank you

Item number: M503N

MAVOLUX 5032B USB

  • mavolux_5032B.jpg
  • mavolux_5032C_USB_koffer.jpg
  • SLMT_09_Museums_Galleries.jpg
  • Work Place Lighting_800x800.jpg
  • Horticulture Lighting_800x800.jpg
  • LED_Compatibility.jpg
  • Medical_Technology_800x800.jpg
  • Import Sales_800x800.jpg

MAVOLUX 5032 B USB HIGH PRECISION LUXMETER

This High Precision Luxmeter, due to it's outstanding accuracy in accordance with class B, is used primarily for certification and inspection applications.

An additional measuring range with high initial sensitivity of 0.01 lx makes it possible to measure extremely small light intensities. This even permits reliable measurement of emergency lighting.





Product Highlights

Illuminance [Lux] 0.01 lx…199 900 lx/
0.001 fc…19 990 fc
Luminance 0.1 cd/m²…1 999 000 cd/m²/0.01 fL…199 900fL
with optional luminance attachment, not classified
Measuring ranges 5
Measuring range selection Automatic / manual
Measuring rate 2 per second
Measuring method Distance measurement, Distance measurement,
Contact measurement with optional luminance attachment
Measuring sensor Silicon photodiode with V (λ) filter
Probe with tripod thread
Measurement cable 1.5 m, plug-in
Measured value memory 100 measured values
Error limit – V(λ) adapted (f1‘), typical < 3 %
Error limit – overall error, typical ≤ 8 %
Accuracy ± 3 % of reading ± 1 digit

Your advantages

After pressing the HOLD key, the measured value is saved to memory and display illumination included with this version is activated, making it possible to read the display in dark environments. Adaptation to the spectral brightness sensitivity of the human eye V(λ) is highly precise with minimal deviation of just f1‘ < 3 %. Both variants can be used as unclassified luminance meters with the help of an optional luminance attachment with an acceptance angle of 15°. Luminance is measured in candelas per square meter (cd/m²) or footlamberts (fL), and defines the perceived brightness of a back-lighted or reflecting surface.

Applications

MAXIMUM PRECISION

Classified measurement of illuminance in lx or fc in accordance with class B or class C per DIN 5032-7, appendix B of DIN EN 13032-1 and CIE 69.

COSINE CORRECTIONS

The luminosity of a flat measuring surface is proportional to the cosine of the incident angle of light. This relationship is taken into consideration by the sensor during evaluation.

NON-VOLATILE MEMORY

100 measured values can be saved, retrieved or transmitted to a PC via the integrated USB port. Average illuminance values can also be calculated as a result.

BROAD MEASURING RANGE

High initial sensitivity and a resolution of 0.01 lx or 0.001 fc for the MAVOLUX 5032 B USB, right on up to large illuminance values of 199,900 lx or 19,990 fc.

SIMPLE EXPANSION OF FUNCTIONS

Unclassified measurement of luminance in cd/m2 or fL is made possible by the optional luminance attachment.

An additional adapter disc prevents erroneous measurements due to incidence of light from the side.

CONVENIENT EVERYDAY USE

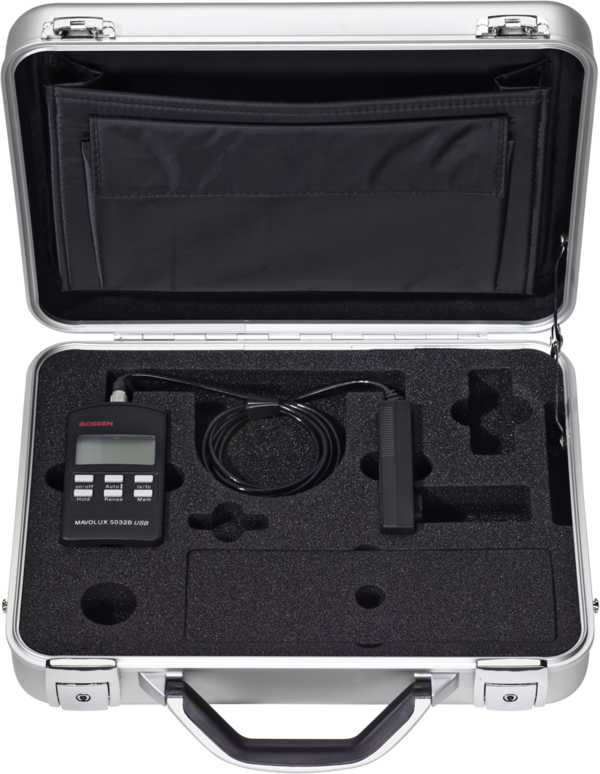

Simple operation, easy to read display, compact design, protection during transport in a high quality aluminum case.

V(λ) ADAPTATION

The spectral sensitivity of the silicon photodiode is color corrected and corresponds to the spectral brightness sensitivity of the human eye V(λ). The quality of this adaptation represents a significant difference between the class B and class C variants.

COMPUTER-AIDED MEASUREMENT

The meter’s continuous operating mode is assured thanks to power supply via the USB port. Meter control, as well as reading, display and storage of measured values, is managed with GLUX 2 s

  • Contents
    • Mavolux 5032B
    • Aluminum case
    • GLUX 2 software
    • USB cable
    • Battery
    • Operating instructions
