SIRAX BM1250 - Basic

Thank you

Item number: 182858

Multifunctional measuring device for network parameters

The multifunctional power and monitoring instrument SIRAX BM1250 is suitable for fixed installation and for the measurement of the most important electrical parameters in low-voltage systems.

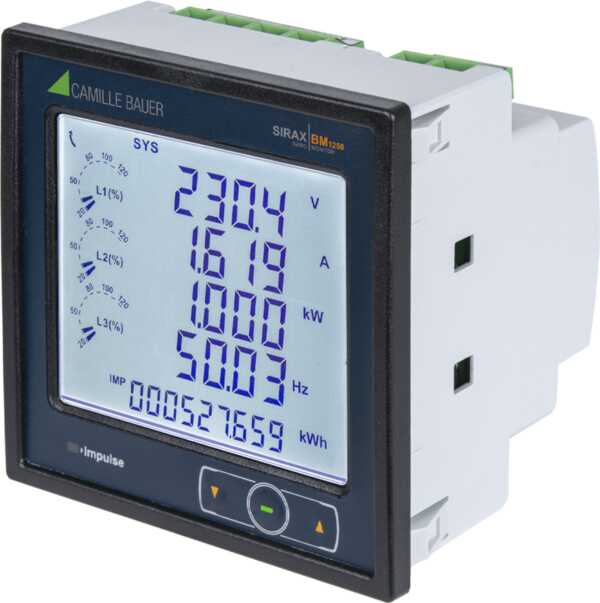

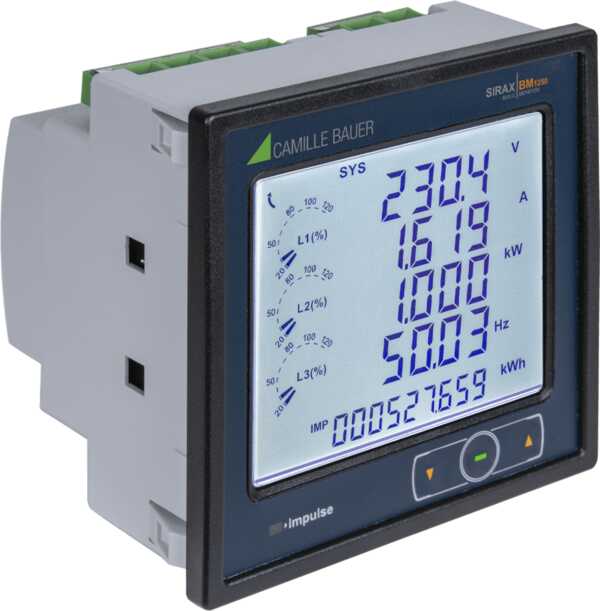

  • bm1250-sirax-bm1250_front_19048.jpg
  • bm1250-sirax-bm1250_persp1_19049.jpg
  • bm1250-sirax-bm1250_persp2_20416.jpg

The measurement is designed for 1- or 3-phase networks with 2-, 3- or 4-wire connections and are used to safely monitor the electrical distribution. The measured values are displayed on the generous LCD display. The device (96x96mm) has two optional outputs that can be configured as a pulse output for energy measurement, limit output, timer function or relay output. An RS485 interface with Modbus / RTU is also available.

Product Highlights

User-friendly

  • The device can be operated very easily via 3 pushbuttons
  • With its large, backlit LCD display, the measured data is very easy to read
  • The User Assignable Screens feature lets you define 1 to 10 on-screen displays out of 28 screens
  • Easy, flexible and quick installation thanks to Easy Clip or mounting brackets

Multifunctional

  • Variety of functions for measuring voltage, current, power, energy and quality
  • Various relay functions integrated (pulse output for energy measurement, limit value output, timer function, RTC relay output)
  • Built-in 8MB Flash Datalogger (event logging, time logging, load profile logger)
  • On-site configuration (configuration via pushbuttons, USB interface or via RS485 / Modbus RTU possible)
  • Easy integration into higher-level systems through open communication via Modbus RTU

Communicative

  • RS485 interface with Modbus / RTU protocol

Safe

  • Password protects against unauthorized modification of programming and configurations
  • No password given from factory default side

Applications

  • Display and control of electrical characteristics in power distribution systems
  • Internal energy billing/monitoring/auditing
  • Submetering and utility billing
  • Electrical load monitoring
  • Technical characteristics

    Measurement

    • Current (I1, I2, I3, IN, ISystem)
    • Voltage (U1, U2, U3, USystem, U12, U23, U31)
    • Frequency (f)
    • Power (P1, P2, P3, ΣP, Q1, Q2, Q3, ΣQ, S1, S2, S3, ΣS)
    • Power factor (PF1, PF2, PF3, ΣPF)
    • Phase angle (Cosϕ1, Cosϕ2, Cosϕ3, ΣCosϕ)

    Quality

    • Total harmonic distortion (THDI1, THDI2, THDI3, THDISystem, THDU1, THDU2, THDU3, THDUSystem)
    • Harmonics up to the 31st harmonic (I1, I2, I3, U1, U2, U3)

    Counter

    • Active energy (kWh Import/Export)
    • Reactive energy (kvarh Import/Export)
    • Apparent energy (kVah)
    • Run and On hour counter
    • Built-in Real Time Clock
    • Time-based data logger

    Events

    • Phase absent indication
    • Phase reversal indication (clockwise/counter clockwise)
    • Number of interruptions

    Output

    • Communication RS485 Modbus RTU
    • Relay output (pulse, limit, timer, RTC)
