Item number: A2000

Multifunctional Power Meter for 3-Phase Systems

The A2000 multifunctional power meter measures all values for three-phase systems.

  • a2000-a2000_front.jpg

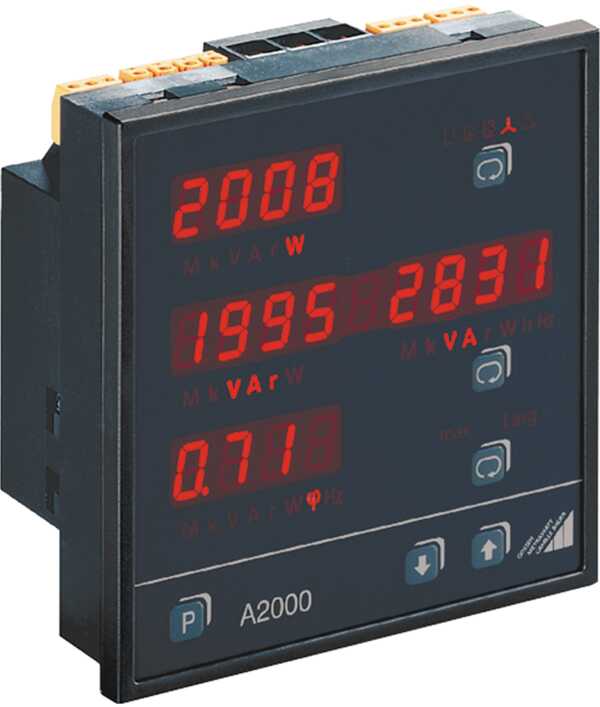

  • a2000-a2000_persp2.jpg
  • Technical characteristics
    • 2 Analog inputs for standard signal or Pt1000 sensors e.g. for temperature measurements at transformers
    • Data logger with 250.000 entries
    • Connection with Kieback&Peter DDC3000 via SBM51/13
    • RS 232 and RS 485 interfaces included
    • Versions available for PROFIBUS, Modbus, LON and Ethernet
    • Minimal installation depth of less than 60 mm
    • Adjustable voltage and current transformer ratios
    • A single device for 1 A and 5 A current transformers
    • Limit value and analog outputs included as standard equipment
    • 2 pulse outputs for read-out of active and reactive energy
    • Data memory for continuous recording of measurement values or for events recording - 8 years buffered
    • List of 98 available measuring quantities
    • Additional range of power supply 20 .. 27 VAC / 45 .. 450 Hz and 20 .. 36 VDC
    • Lan/ Web access via TCP/IP network adapter (accessories - NETBOX)
    • 3 Years Warranty
    • Made in Germany
