SINEAX AM1000

Thank you

Item number: AM1000-

Transparent power quality and energy consumption monitoring

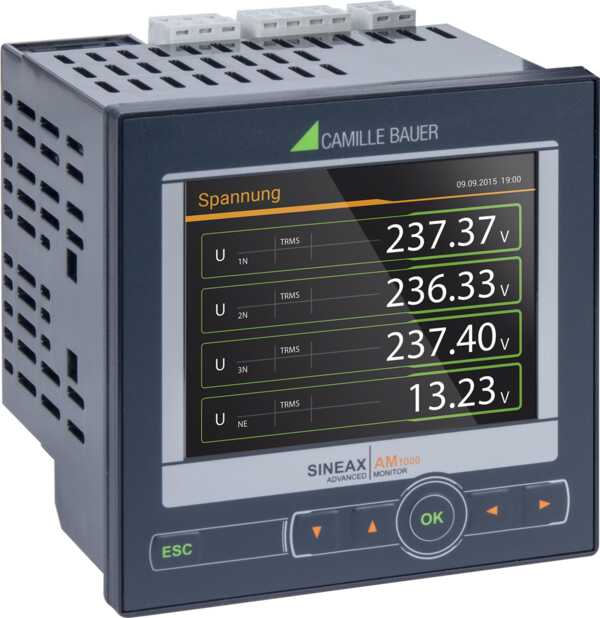

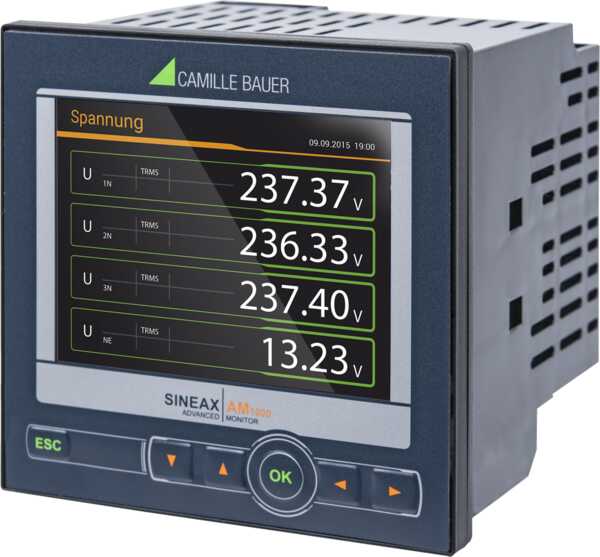

  • am1000-sineax-am1000_front_16612.jpg
  • am1000-sineax-am1000_persp1_16613.jpg
  • am1000-sineax-am1000_persp2_16614.jpg

The SINEAX AM1000 is a compact instrument for measuring and monitoring in power distribution systems.

It excels in display quality and intuitive operation. The devices provide a wide range of functionalities which may even be extended by optional components.

The modern, multi-lingual design allows operating and parameterizing the device via website or the high-resolution color TFT display (320x240px). The integrated webserver provides remote acquisition, visualization and analysis of measured data. No additional software is required.

  • Technical characteristics

    Condition monitoring

    • Provision of all voltages, currents, powers, power factors every 10/12 cycles
    • Extended reactive power analysis
    • Variance of system variables with time reference

    Energy flow analysis

    • Power mean-values with trend-analysis for preventing load-peaks
    • Load profile storage with fluctuation range (min/max) per interval
    • Active /reactive energy class 0.5S (HT/LT, demand/delivery), configurable resolution
    • Further mean-values and meters with selectable base quantity

    Power quality analysis

    • Harmonic analysis acc. IEC 61000-4-7
    • Assessment of voltage and current imbalance
    • Phasor and phase sequence display for connection check
    • Waveform display
    • Optional disturbance recorder for PQ events (voltage dip, swell, interruption) acc. IEC 61000-4-30 Ed.3 with RMS1/2 and waveform recordings

    Hardware option

    Analog outputs ±20mA (2/4), Relay outputs (2), Digital inputs (4) active / passive, GPS time synchronization, Fault-current monitoring (residual or earth current), temperature monitoring (Pt100, PTC), IEC61850 or Profinet I/O

    Communication

    • Optional: Ethernet (Modbus/TCP, http/https, NTP, SFTP, SYSLOG), IEC61850, Profinet I/O, Modbus/RTU
    • Scheduled data export to SFTP server (option Ethernet required)

    Security (option Ethernet required)

    • Flexible Role Based Access Control
    • Encrypted communication via HTTPS
    • Audit Log records all security related procedures, support for SYSLOG for transfer to central network monitoring server
    • Client whitelist: IP address list for restricting authorized computers
    • Digital firmware signature: Prevents that manipulated firmware gets into the device via update

    Further features

    • 3 current and 3 voltage channels with 0.2% accuracy, direct measurement or via transformers
    • Measurement category 600V, CAT III (voltage), 300V,CAT III (current)
    • Standard IOs: 1 digital output, 1 digital input/output
    • Data logger with16 GB data memory (option)
    • Sampling rate: 18kHz
    • Monitoring and alarming via limit values and monitoring functions
    • For panel mounting 96x96mm
    • Identical operation as devices of the PQ/CU/DM series
