SIRAX BT5400

Thank you

Item number: 175316

Measuring Transducer for Power, Power Factor and Phase Angle, RS485, LCD Display

  • bt5400-sirax-bt5400_front_16643.jpg

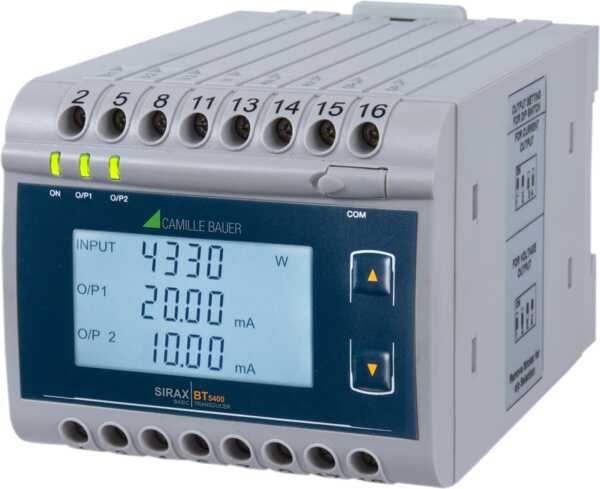

  • bt5400-sirax-bt5400_persp1_16644.jpg

The SIRAX BT5400 is used to measure and convert active, apparent, reactive power, phase angle & power factor of a single phase or 3-phase AC system with balanced or unbalanced load into an proportional DC current or voltage output signal.

  • Technical characteristics
    • Connection type: One-phase, 3-phase 3-wire balanced or unbalanced load or 3-phase 4-wire balanced or unbalanced load
    • Measuring input for power
    • Nominal voltage up to 500 V, nominal current 1 / 5 A
    • 2 configurable analog outputs linear or kinked in a unipolar range of 0...20 mA / 4...20 mA or 0...10 V or a
    • bipolar range of -20...0 mA or -10...0...+10 V
    • Quick on-site programming using push buttons or via CB-Configurator software
    • Simple on-site device operation
    • Clear and well readable representation of measured data via LCD display
    • Flexible communication and remote readout via integrated Modbus RTU interface
    • DIN rail for top-hat rail mounting
