Item number: B604S-

Prog. Measuring Transducer for Temperature and DC Quantities, 2 Inputs

Programmable Multifunctional Transmitter

for currents, voltages, temperature sensors, remote transducers or potentiometers

  • b604s-sineax-vb604s_front_16514.jpg

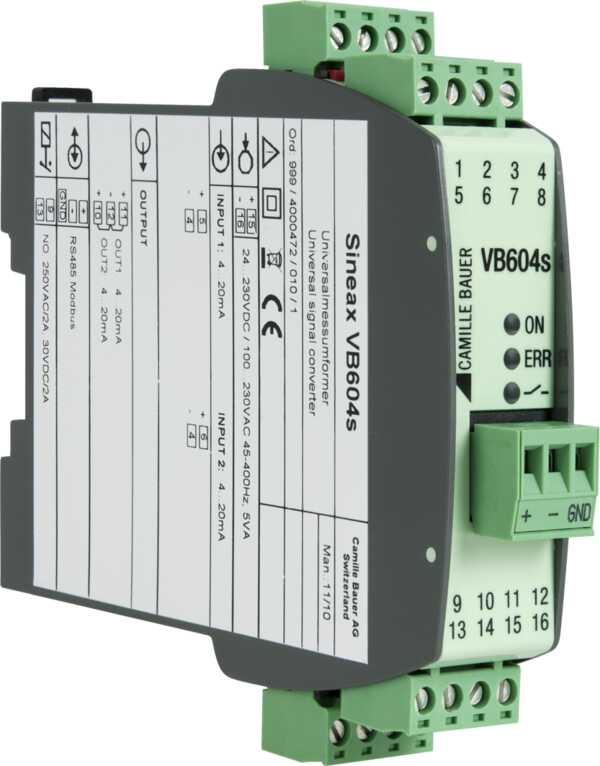

  • b604s-sineax-vb604s_persp2_16515.jpg
  • Technical characteristics

    The V604s is for top-hat rail mounting with the following main features:

    • Measurement of DC-voltage, DC-current, temperature (RTD or TC), resistance
    • Sensor connection without external jumpers
    • Programmable remote I/O functionality. Readout of all input variables and internally calculated values via MODBUS. Simultaneously, the outputs and the relay may be controlled via MODBUS.
    • 2 inputs (e.g. for sensor redundance or differential measurement)
    • 2 outputs (U and?/?or I)
    • 2 inputs can be combined with each other and can be related to the 2 outputs. With this calculations and sensor monitoring is possible (e.g. for a predictive maintenance of the sensors)
    • System capability: communication through RS485 Modbus-interface
    • Freely programmable relay e.g. for limit valves and alarms
    • AC/DC-wide range power supply unit
    • Pluggable high-quality screw terminals

    All adjustments of the device can be adapted to the measuring task by means of a PC-software. The software can also be used for visualization, commissioning and for service.
