Item number: 708-

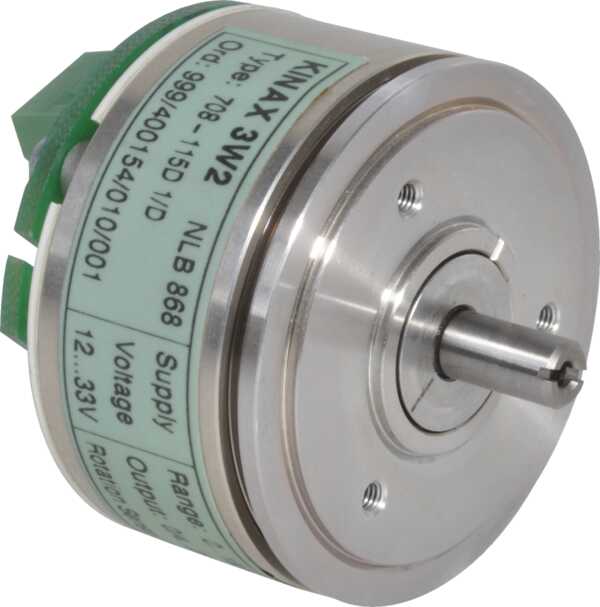

Measuring Transducer for Angle of Rotation, Panel-mount Device, Ex/NEx

Measuring transducer with contactless, capacitive sensing system for acquiring the angular position of a shaft. A load-independent DC signal with a range of 4 to 20 mA is made available at the measurement output.

  • 708-kinax-3w2_persp1_16500.jpg
  • 708-kinax-3w2_persp2_16501.jpg
  • Technical characteristics
    • Patented contactless capacitive system / wear-free
    • Analog measuring method, practically infinite resolution
    • Angle of rotation measuring range: 0.. 5 to 0.. 270°
    • Measurement output: 0.. 1 to 0/4.. 20 mA
    • Available with "intrinsically safe" explosion protection per EEx ia IIC T6, can be used in explosive atmospheres
    • Adjustable zero point and span
    • Output quantity characteristics: linear or as a characteristic V curve
    • Minimal torque: < 0.001 Ncm
    • Drive shaft has no mechanical stops and can be infinitely rotated.
    • Available as maritime execution (formerly GL, Germanischer Lloyd) / suitable for use on ocean-going vessels
