KINAX HW730

Thank you

Item number: 730-

Measuring Transducer for Angle of Rotation, for Hollow Shafts, Rugged Design, Ex/NEx

Converts the angular position of a shaft into a load independent direct current signal, proportional to the angular shaft position. The unit is contact free.

  • 730-kinax-hw730_front_16502.jpg

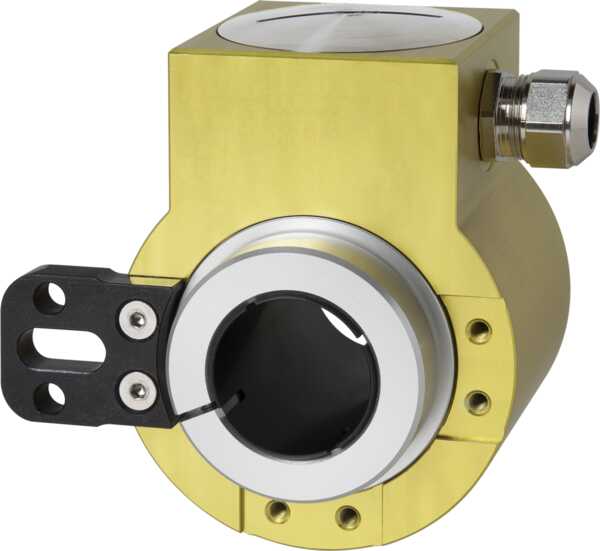

  • 730-kinax-hw730_persp1_16503.jpg
  • Technical characteristics
    • Programmable
    • Robust transducer for angular position suitable for field applications
    • Highest degree of mechanical and electrical safety
    • Proven capacitive scanning system
    • No wear, low annual maintenance and mountable anywhere
    • Vibration and shock-resistant
    • Measuring range, sense of rotation, zero position and linear/V characteristic can be adjusted by a switch and two push-buttons
    • Analog output signal 4..20 mA, 2-wire connection
    • Zero position and end position are independently adjustable
    • Capacitive scanning system provides absolute position immediately after activation
    • Available with ATEX and IEC Ex explosion protection
    • Available with maritime product features (formerly GL, Germanischer Lloyd)
