Item number: Z593A

Measuring Accessory Set for Earth Measurements in Rugged Outdoor Carrying Pouch

Suitable for measurements with any earth tester for determining earth resistance in accordance with the 3 or 4-pole measuring method.
  • z593a-e-set-basic_front_20150.jpg
  • z593a-case-e-set-basic_front_20151.jpg
  • z593a-case-e-set-basic_persp1_20152.jpg
  • z593a-case-e-set-basic_persp2_20153.jpg

Product Highlights

  • Universal use
  • Handy cable reel
  • Massive earth spikes made of galvanized steel
  • Technical product comparison
  • Contents

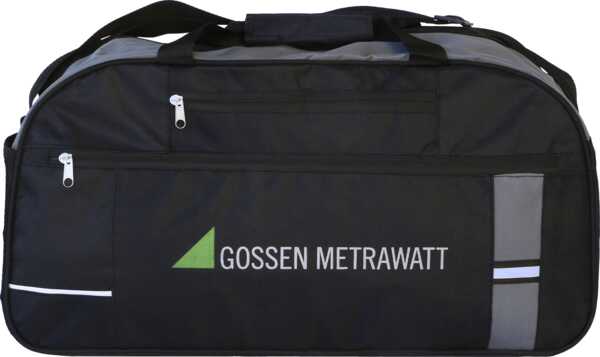

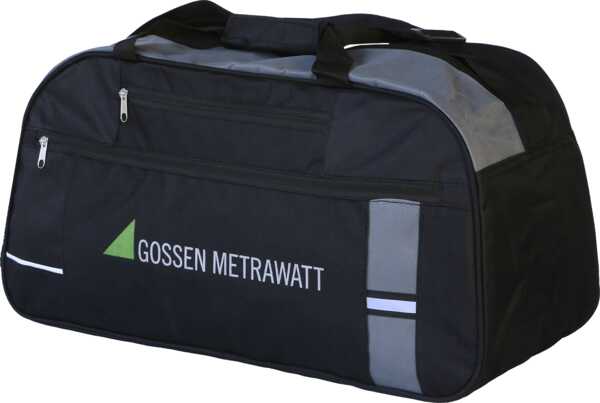

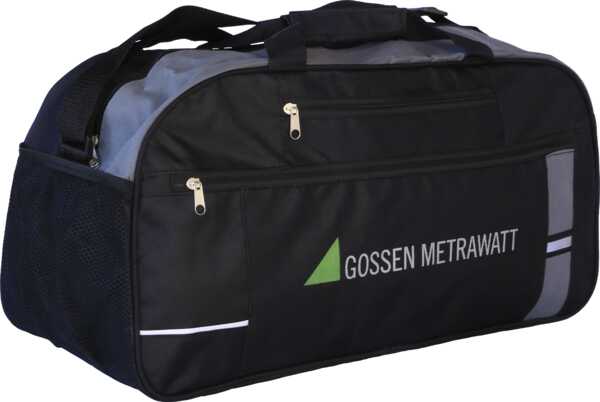

    1x carrying pouch
    2x earth spikes 420 mm
    1x blue measurement cable, 40 m long, on cable reel with hand strap, 1 kV CAT III
    1x red measurement cable, 20 m long, on a cable reel with hand strap, 1 kV CAT III
    1x black measurement cable, 2 m long, 1 kV CAT IV
    1x green measurement cable, 2 m long, 1 kV CAT IV
    1x red measurement cable, 30 cm long, 1 kV CAT IV
    1x blue measurement cable, 30 cm long, 1 kV CAT IV
    1x black test clamp with 4 mm socket
    1x green test clamp with 4 mm socket
