Item number: M514R

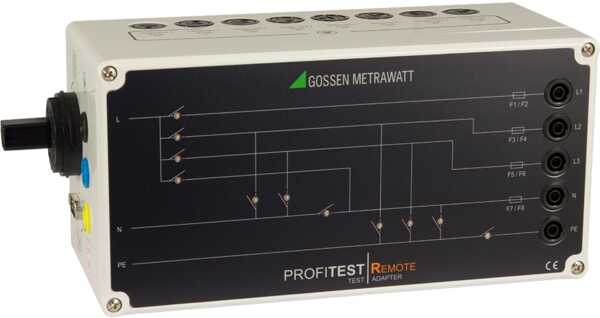

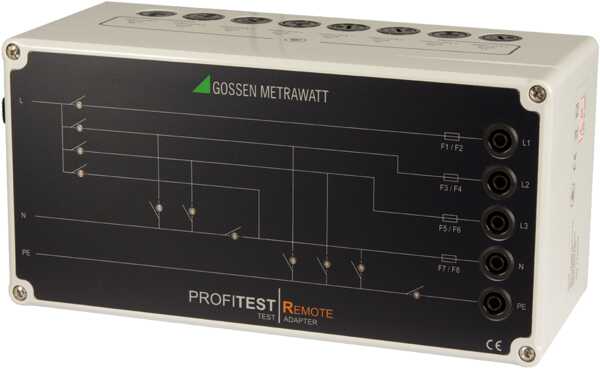

3-Phase Test Adapter for PROFITEST MTECH+ IQ and MXTRA IQ
3-phase test adapter for test instruments including PROFITEST MTECH+ IQ and MXTRA IQ – for measuring loop and line impedance, as well as insulation resistance
Flexible options provided by the PROFITEST Remote adapter in combination with GOSSEN METRAWATT test instruments permit use in a great variety of applications. Thanks to accessories which are perfectly matched to the requirements, single and 3-phase systems can be tested in accordance with the standards – quickly and without time-consuming replugging of the measurement cables. Each measuring circuit is separately fused for best possible protection. Power is supplied via the interface, thus permitting mains-independent use of the PROFITEST Remote.
Product Highlights
- For use with PROFITEST MTECH+ IQ and MXTRA IQ
- Measurement of loop and line impedance ZL-PE and ZL-N
- Measurement of insulation resistance RINS with up to 500 V DC
- No replugging required during measurement
- No phase reversal possible during measurement
- Saves time for testing in electrical systems
- Connection to the test instrument via 3-pole PRO-SCHUKO test adapter or 4 mm safety sockets L, N and PE
- The test adapter is controlled via the connected test instrument
- Connection to the electrical system via 4 mm safety sockets L1, L2, L3, N and PE
- Data communication via RS 232 port
- No need to determine offset thanks to 4-wire measurement
- Indication of conductor connection via LED
Your advantages
- High levels of operational reliability thanks to separate fusing for each measuring circuit
- Mains-independent use is possible thanks to 5 V supply via the interface
- Flexible connection options with optional connecting cable for 16/32 and 63 A
- No replugging required during measurement
- No phase reversal possible during measurement
- Saves time for testing in electrical systems
Applications
- Measurement of loop impedance ZL-PE
- Measurement of line impedance ZL-N
- Measurement of insulation resistance RINS with up to 500 V DC
- Mobile use with various PROFITEST instruments
Loop and line impedance measurements can be performed in combination with the PROFiTEST MXTRA IQ and MTECH+ IQ within a range of 65 to 500 V. Furthermore, insulation resistance can also be measured with variable nominal voltage without time-consuming replugging.
-
Technical characteristics
- Measuring category: CAT III 300 V
- Measurement of loop and line impedance ZL-PE and ZL-N
- Measurement of insulation resistance RINS with up to 500 V DC
- Connection to the test instrument via 3-pole PRO-SCHUKO test adapter or 4 mm safety sockets L, N and PE
- The test adapter is controlled via the connected test instrument
- Connection to the electrical system via 4 mm safety sockets L1, L2, L3, N and PE
- Data communication via interface
- No need to determine offset thanks to 4-wire measurement
- Indication of conductor connection via LED
- Dimensions (W x H x D): 275 x 105 x 120 mm
- Weight: approx. 1.1 kg (test adapter without cable)
-
Particularities
- No replugging required during measurement
- No phase reversal possible during measurement
- Saves time for testing in electrical systems
- Connection to the test instrument via 3-pole PRO-SCHUKO test adapter or 4 mm safety sockets L, N and PE
- The test adapter is controlled via the connected test instrument
- No need to determine offset thanks to 4-wire measurement
- Indication of conductor connection via LED
