SECULIFE DP PRO

Thank you

Item number: M6950

Configurable Precision Digital Measuring Instrument for Pressure Measurement

The SECULIFE DP PRO precision pressure gauge is a top quality, precision measuring instrument for the detection of positive and negative pressure in compatible liquids and gases.

  • m6950-seculifedppro_front_15003.jpg

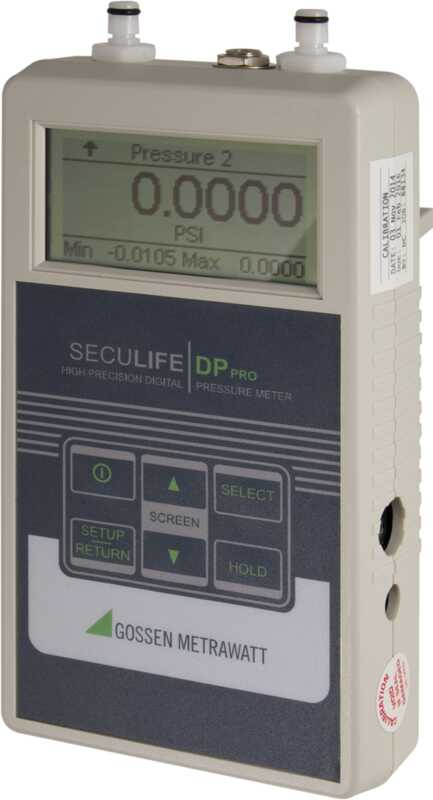

  • m6950-seculifedppro_persp1_15004.jpg

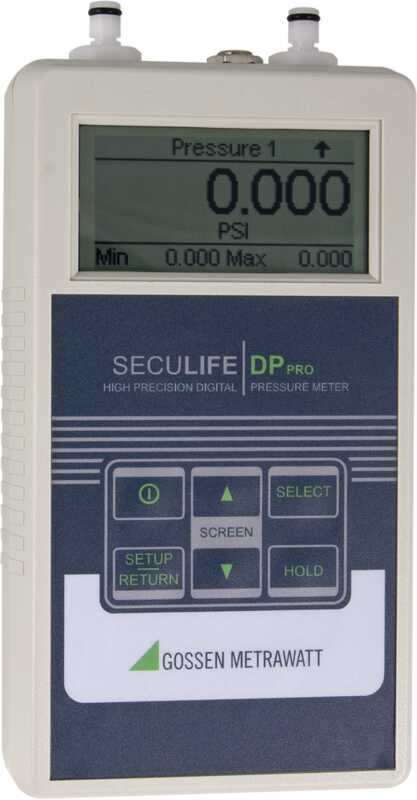

  • m6950-seculifedppro_persp2_15039.jpg

The utilized LCD is distinguished by good legibility. The instrument is equipped with an RS 232 port for data communication and offers the additional option of Min-Max measurement. The SECULIFE DP PRO is digitally calibrated and features excellent accuracy, namely 0.05% of the overall display.

  • Technical characteristics
    • Measuring ranges: psi, mm Hg at 0 / 20 °C, in Hg at 0 / 20 °C, cm H2O at 20 °C, in H2O at 4 / 20 °C, in H2O at 60 °F, kg/cm2, kPa, mBar, bar
    • 2 selectable pressure measuring channels 0.3, 5, 10, 75, 100 psi
    • Temperature option: YSI 700 or RTD 100
    • 24-bit measuring depth
    • ± 0.05% pressure measuring accuracy
    • Graphic LCD
    • Programmable digital filter
    • Digital calibration and zero adjustment
    • Quick disconnect connector
    • Pressure measurement in liquids and gases
    • Min-Max capture function
    • RS 232 port
