PROFiTEST MXTRA

Thank you

Item number: M520P

currently not available

Range of Test Instruments for DIN VDE 0100-600 / IEC 60364.6
  • m520p-profitestmxtra_dis-zlpe_front_080103b.jpg

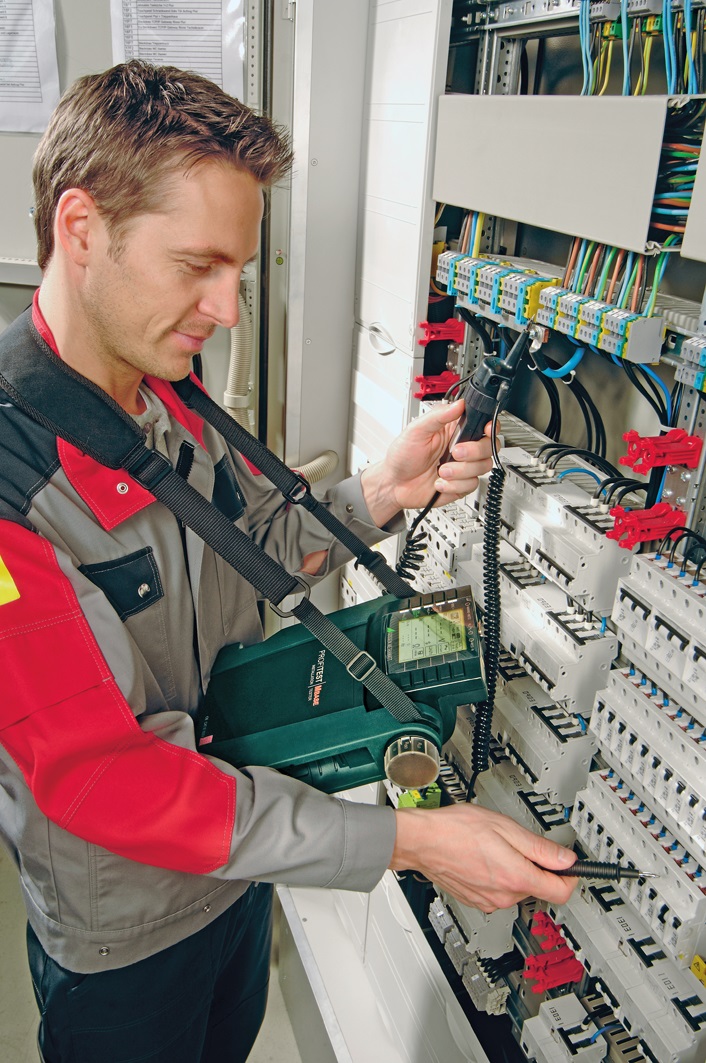

  • profitestmaster_app1_08050a.jpg

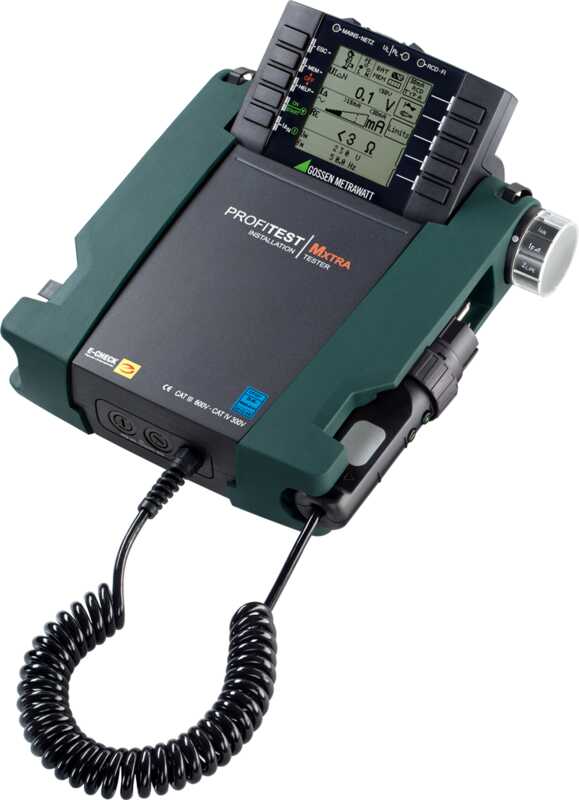

  • m520p-profitestmxtra_dis-if_echeck_persp1_09048a.jpg

The new PROFITEST Master test instrument provides professional electricians with a state-of-the-art, universal measuring tool.

Product Highlights

  • CAT IV DAkkS calibration certificate
  • Bidirectional data exchange
  • Port for RFID readers, barcode scanners
  • Includes ETC software (Electrical Testing Center) incl. report templates acc. DIN VDE 0100-600, lightning protection system acc. DIN EN 62305, concrete-footing ground electrode acc. DIN 18014
  • Universal connector system
  • All measurements per VDE0100, part 600 and per GOST R (ГОСТ Р) 50571.16-99
  • Testing of residual current devices (RCCBs)
  • Loop and line impedance measurement
  • Voltage drop measurement
  • Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
  • Low-resistance measurement
  • Earth resistance measurement
  • Standing-surface insulation measurement
  • DIN VDE 0100-600 / IEC 60364.6

Your advantages

PROFITEST – versatile and future-proof

  • Intuitive operation
  • Efficient work
  • Standards-compliant testing
  • Legally secure documentation

PROFITEST – saves time and money

  • As single test instrument for a broad range of applications
  • All measurements without any bothersome replugging of the measurement cables
  • Can be used all over the world thanks to language selection

PROFITEST – even 10 years down the road

  • Future-proof thanks to firmware updates
  • 10-year service guarantee
  • DAkkS certificate issued by own calibration laboratory
  • User support for questions about testing

PROFITEST – quick and easy report generation

  • Cascadable, future-proof software concept
  • Modern data management by means of customer and measurement data administration
  • Creation of system structures – from the system all the way down to the measuring points
  • Quick and easy generation of a legally secure report per ZVEH

PROFITEST – reliable measuring and testing

  • Easy operation with rotary switch
  • Predefined test sequences for structured testing
  • On-site help thanks to help function with wiring diagrams
  • Measuring category: 600 V CAT III / 300 V CAT IV
  • 4-wire measuring method – no compensation of the measurement cables is required

Applications

ProdAnwendung_TestText_GB
  • Technical characteristics
    • Broad-range measuring device for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
    • Loop and line impedance measurement with DC bias magnetization
    • Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
    • Low-resistance measurement with automatic polarity reversal
    • Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, F, B, B+, EV and MI)
    • Testing of RCCBs in IT systems
    • Testing of insulation monitoring devices (IMDs)
    • Testing of residual current monitoring devices (RCMs)
    • Measurement of earth resistance (mains/battery operation)
    • Leakage current measurement with PRO-AB adapter
    • Standards-compliant testing of charging stations per IEC 61851 in combination with the PRO-TYP I/II test adapter
    • Testing of type S and K PRCDs with the PROFITEST PRCD
    • Residual voltage measurement per EN 60204
    • Automatic test sequence function
    • USB/Bluetooth port
    • Push-print function – transmission of the measured value after measurement
  • Particularities

    Innovative, global operating concept

    • Quick access to measuring and test functions via the rotary switch and softkeys

    User-friendly

    • No time-consuming replugging of the measurement cables is required

    Modern data management

    • Comprehensive data management concept in combination with user software including customer and measurement data administration, test sequences, report generation and more

    Unique storage concept

    • Creation of system structures – customers, systems, machines, distributors, RCDs, IMDs, RCMs, electrical circuits, earth electrodes, equipotential bonding rails, operating equipment and individual measuring points

    Push-print function

    • Transmission of the measured value via Bluetooth/USB after measurement has been completed

    Test secuences

    • Preparation of individual test sequences for quick and reliable testing of electric equipment and machines

    Universal interface

    • Bidirectional data exchange (USB), connection of a barcode scanner, Bluetooth/USB: Push-print function
