Item number: M525M

Test Instrument for Electric DC Charging Stations

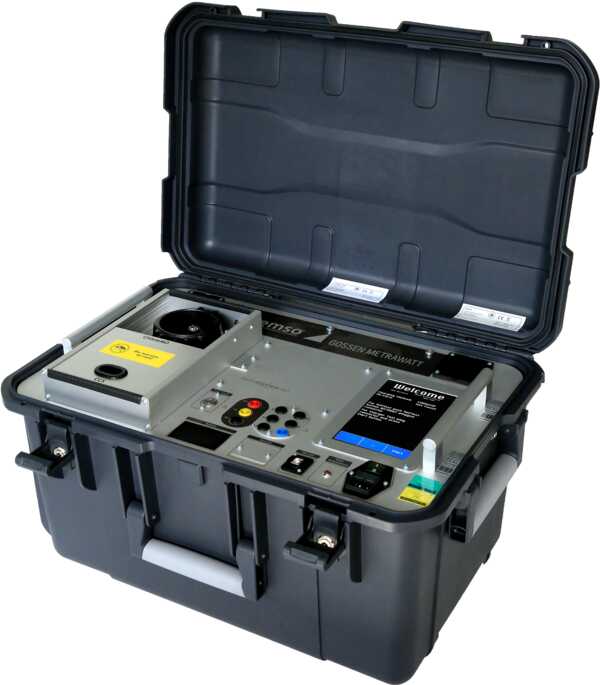

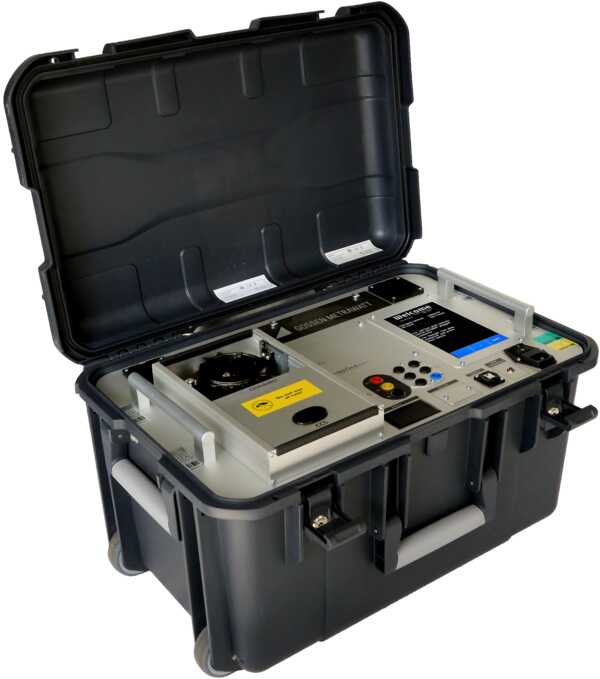

The PROFITEST H+E XTRA C is a diagnostics tester for simulating the charging process with DC source and load. The instrument is equipped with integrated measuring inputs for connecting an installation tester in order to check the effectiveness of protective measures.

Use as Diagnostics Tester for Electric Charging Stations

After servicing, CCS and CHAdeMO systems can be tested after maintenance. Within just one minute, the instrument indicates whether or not the charging station is working correctly.

Product Highlights

Testing of the functional performance of electric charging stations for DC-CCS, CHAdeMO and AC
Automatic test sequence / simulation of a DC EV per DIN SPEC 70121 and ISO 15118-1
Detection of insulation faults
4 mm safety sockets for DC+, DC- and PE for connecting a PROFITEST PRIME test instrument in order to test the effectiveness of protective measures
Storage of measured values
Software for generating test reports

Applications

EV simulation during communication for drawing EVSE charging current
EV simulation at DC load circuit, adapted to communication
Test/analysis standards
- DC-CCS per DIN SPEC 70121 or ISO 15118-1,
- CHAdeMO
- AC
Measured values for direct voltage and direct current
Test sequence for detecting insulation faults

Technical characteristics
- Compact case-housing
- Ideal for service calls
- Large display
- User interface language: English
- USB data interface for reading out measured values, and for firmware updates
Particularities
EV diagnostics tester for DC charging stations for CCS, CHAdeMO and AC
- EV simulation during communication for drawing EVSE charging current
- EV simulation at DC load circuit, adapted to communication
- Test/analysis standards
  - DC-CCS per DIN SPEC 70121 or ISO 15118-1,
  - CHAdeMO
  - AC
- Measured values for direct voltage and direct current
- Test sequence for detecting insulation faults
- Graphic color display with intuitive touchscreen
- Interface for software connection and firmware updates
- Read-out of test results (passed/failed) depending on charging variant
- Results reports can be downloaded as PDF files via USB read-out
