Item number: F504G

Illuminance Monitoring for Contact Measurement at Displays

  • f504g-mavomonitor_front_20030.jpg

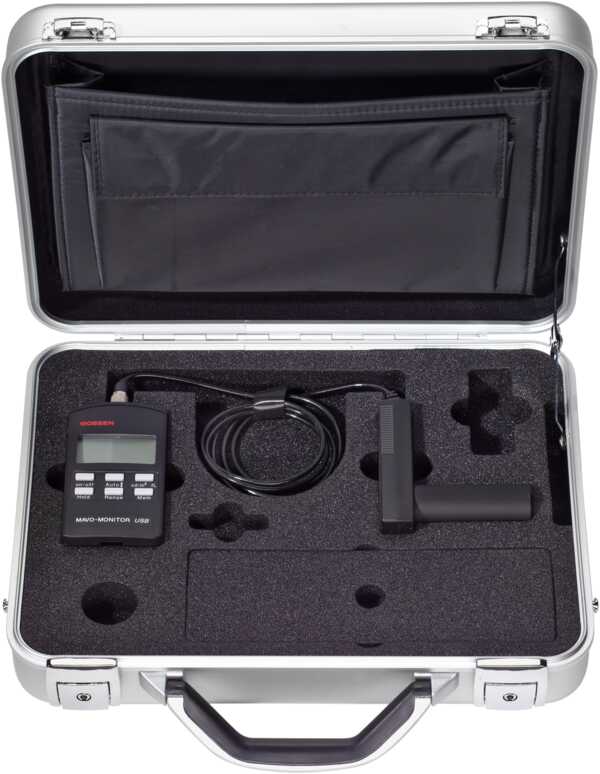

  • f504g-mavomonitor-case_20037.jpg
  • f504g-mavomonitor_persp1_20031.jpg
  • f504g-mavomonitor_persp2_20032.jpg

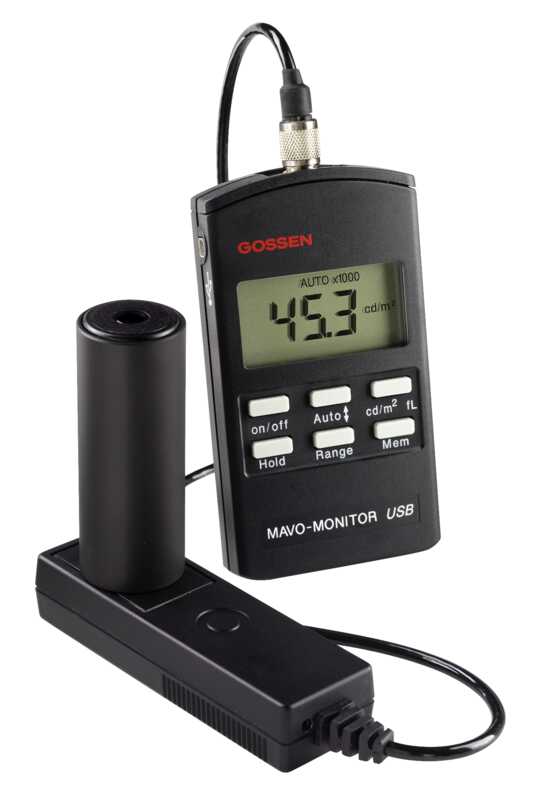

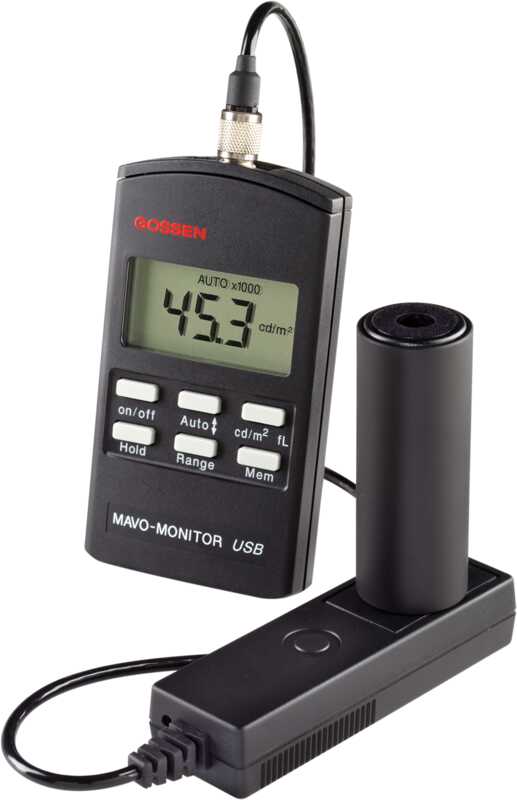

The luminance of monitor screens can be precisely measured and documented with the help of the MAVO-MONITOR USB precision measuring instrument. The device is designed for class B contact measurements. It’s suitable for the performance of measurements at transilluminated and self-luminous surfaces.

The silicon sensor included with the MAVO-MONITOR USB is color corrected – its spectral sensitivity is precisely matched to that of the human eye. This instrument fulfills all requirements for luminance meters specified in DIN 5031-7 and DIN EN 13032-1 class B.

The MAVO-MONITOR USB is equipped with non-volatile memory for up to 100 measurement results and an integrated USB port.

  • Technical characteristics
    • Precision luminance measurement
    • Color corrected silicon photodiode
    • Storage of up to 100 measured values
    • Automatic and manual measuring range selection
    • Luminance units of measure: cd / m2 or fL
    • CD ROM with software for measured value logging and display, as well as device control

    Interface: USB port
