Item number: F508G

Illumination Analyzer for the Quality Assurance of Medical Displays

  • f508g-mavospot-2usb_left_20033.jpg
  • f508g-mavospot-2usb-case_20036.jpg
  • f508g-mavospot-2usb_right_20035.jpg
  • f508g-mavospot-2usb_persp1_20034.jpg

The SECULIFE IA was developed and is very well-suited for demanding measuring tasks in the field of medicine such as acceptance and constancy testing for diagnostic monitors and measurements performed at:

  • CT scanners
  • Digital X-ray equipment
  • Sonographic systems
  • Magnetic resonance imaging scanners
  • X-ray film viewers

The SECULIFE IA features single lens reflex optics with a 15° field of view and a sharply marked 1° measuring circle.

Available accessories make it possible to reduce measuring distance to as little as 34 cm, or to measure luminance directly on the monitor’s display.

Product Highlights

  • Precision spot measurement of luminance with a 1° measuring angle
  • Mirror reflex viewfinder with 1° measuring circle and a 15° field of view
  • Distance measurement from 1m to infinity, and down to 34mm with close-up lens (optional)
  • Contact measurement (with optional attachment)
  • Color corrected silicon photodiode Storage of up to 1000 measured values
  • CD ROM with software for measured value logging and display, as well as device control

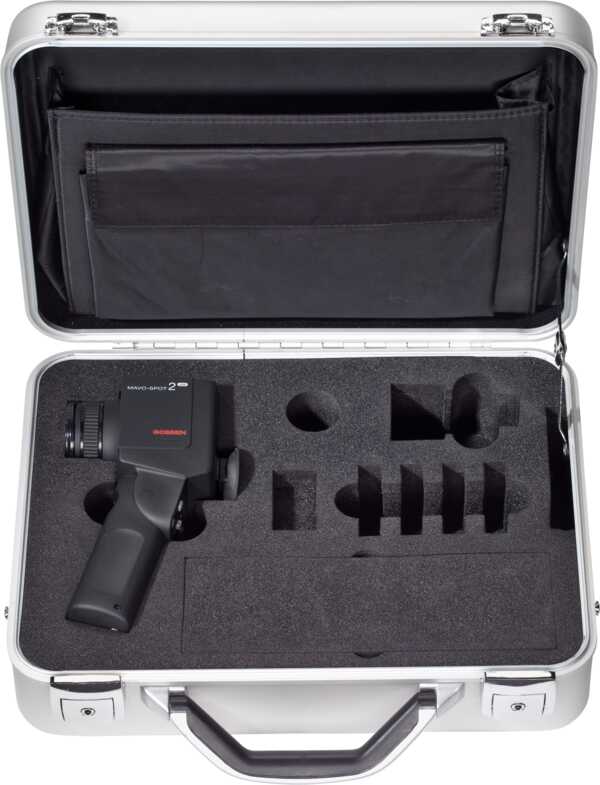

  • Aluminum case included
  • Technical characteristics
    Interface: USB port

    Power Supply: 2 × 1.5V AA batteries, power is supplied via the USB cable when the interface is used.

    PerfectLum Software

    The use of PerfectLum software enables you to perform acceptance and constancy tests in accordance with DIN V 6868-57 and DIN 6868-157 (automatic sequence and documentation).
