Item number: M102A

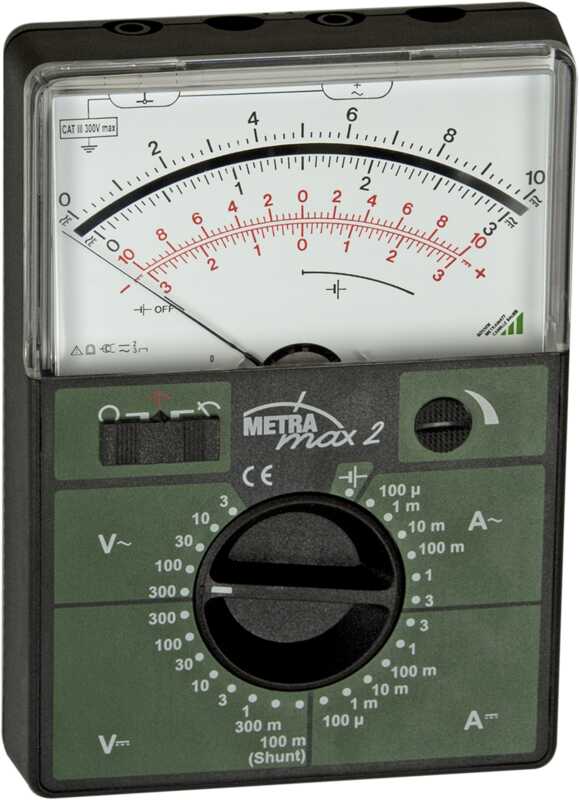

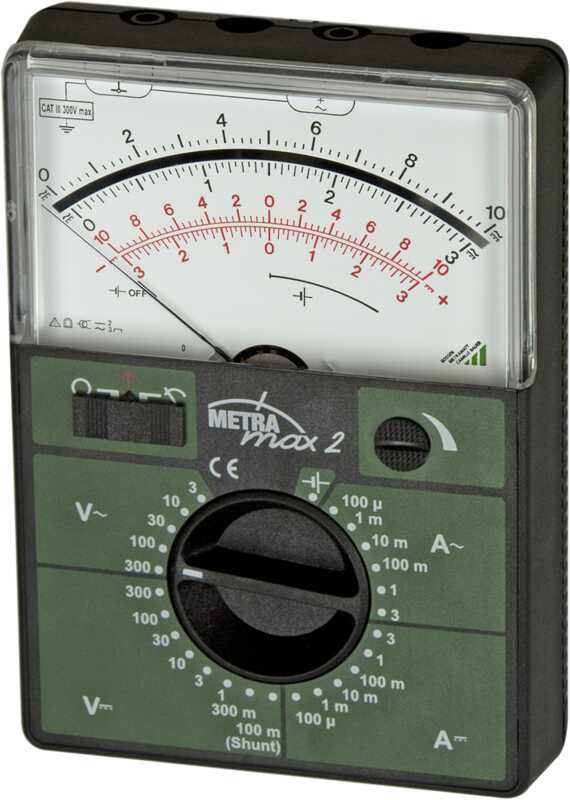

Analog Multimeter for Training Applications

The METRAmax 2 hand-held multimeter was developed in cooperation with a renowned German supplier of training systems and fulfills all of the demands placed upon contemporary vocational training.

Thanks to exceptional overload capacity, selectable scale zero point at left or center and automatic battery cutoff, this instrument is not only well suited for training, but rather for balancing and service work as well.

Product Highlights

Voltage measurement: 0 .. 100 / 300 mV / 1 V=, 0 .. 3 / 10 / 30 / 100 / 300 V= / ~
Current measurement: 0 .. 100 mA / 1 / 10 / 100 mA /1 / 3 A= / ~
Zero point: left / center
Accuracy: 2 = / 3 ~
Dimensions: 100 x 140 x 35 mm
Weight: approx. 0.3 kg with battery
Battery: 9 V flat cell battery, IEC 6 LR 61 (6 F 22)
