Item number: M194A

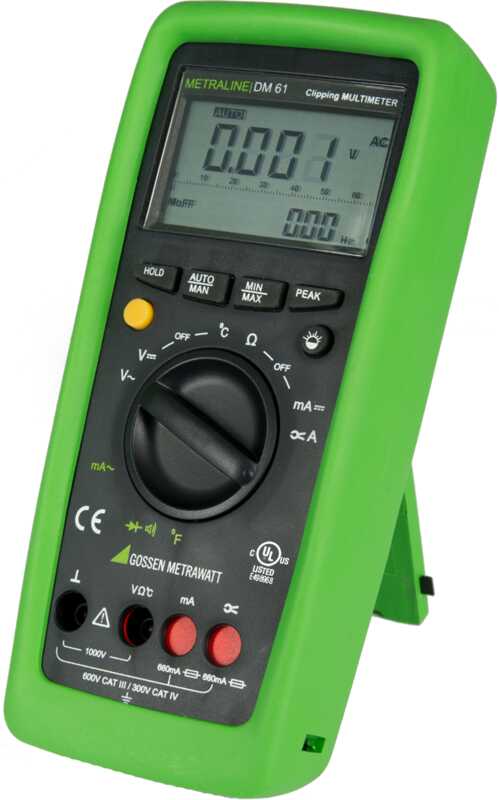

Digital multimeter with analog bar graph and temperature measurement

The METRALINE DM61 offers all of the measuring functions of a comprehensive, medium-priced multimeter: convincing technology with voltage, resistance, current and temperature measuring ranges, as well as additional measuring functions plus automatic functions such as an adjustable clip factor for current transformers.

The digital multimeter with clip function for current transformer clamps and outstanding value for the money. Time-tested Gossen Metrawatt reliability and safety. Reliable measurement results in measuring categories CAT IV 300 V and CAT III 600 V with additional safety for the user and the instrument thanks to automatic blocking sockets (ABS).

The robust METRALINE DM61 digital multimeter offers a great variety of convincing performance features.

It’s equipped with state-of-the-art technology and it assures precision measurement results. The extremely compact and ergonomic design provides for maximized ease of use and safety.

Thanks to a broad range of functions, it’s universally suitable for demanding measuring tasks in a great variety of applications.

Product Highlights

1000:1 clip function for optional current transformers
Automatic blocking sockets (ABS)

Your advantages

Universal use in all fields of electrical engineering!
Measured value indication with digital display (6600 digits) and analog scale
Measurement of voltage and current, AC and DC, resistance, temperature, continuity/diodes
Current measurement up to 660 A via current clamp transformer with a transformation ratio of 1000:1
Automatic measuring range selection and measured value storage
Safety for the user and the instrument in measuring categories CAT III up to 600 V and CAT IV up to 300 V.

Applications

The auto-ranging multimeter for use in all fields of electrical engineering, e.g. electrical installation, study programs and training

Technical characteristics
- Resolution: 6600 digits (3 6/7 place) and analog bar graph (66 points)
- Dual digital display with background illumination
- Basic accuracy: 0.4% V DC
- Voltage: V DC: 100 μV ... 1000 V, V AC: 100 μV ... 1000 V
- Current (direct): A DC: 10 μA ... 660 mA, A AC: 10 μA ... 660 mA
- Current with optional clamp: 10 mA ... 660 A (clip: 1000:1)
- Resistance: 100 mΩ ... 66 MΩ
- Temperature: -50 ... +1300°C, type K thermocouple
- Continuity and diode testing
- Hold / peak / min.-max. / relative (zero)
- Automatic/manual measuring range selection
- Automatic blocking sockets (ABS)
- Measuring category: 300 V CAT IV, 600 V CAT III
- Rubber holster for protection against shocks and impacts
- 3-year guarantee
Particularities
- UL certification
- 36-month guarantee for materials and workmanship
