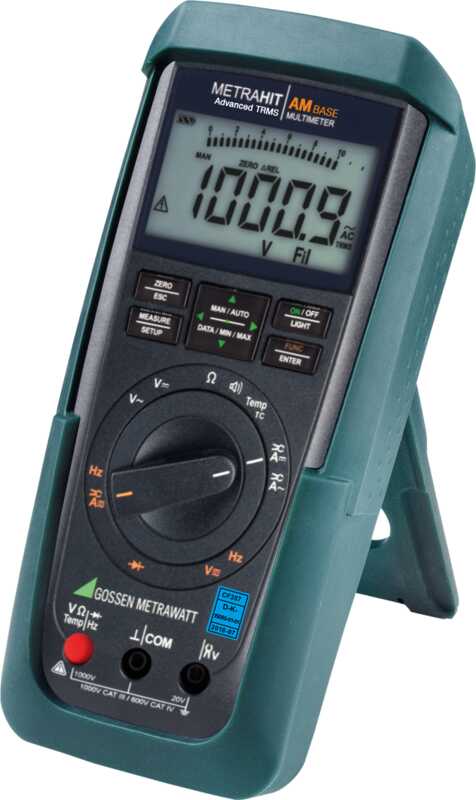

METRAHIT AM BASE

Item number: M241A

TRMS Voltage Multimeter with ±12,000 Digits





Our new STARLINE generation instruments including METRAHIT BASE, PRO and X-TRA, are rugged, reliable digital multimeters with housings made of impact-resistant plastic. They feature a new design and are equipped with state-of-the-art technology.

Product Highlights

• Resolution: ± 12,000 digits
• 3 connector jacks with patented automatic blocking sockets (ABS)
• TRMS AC and AC / DC function
• Voltage measurement with a basic accuracy­ of ±0.05% (V DC)
• Automatic and manual measuring range selection
• Automatic storage of measured values: DATA / MIN / MAX
• Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
• Separate battery and fuse compartments
• IP 52 protection against dust and water
• Measuring categories: 1000 V CAT III and 600 V CAT IV
• Made in Germany
• DAkkS calibration certificate included

Your advantages

• Universal use in all fields of electrical engineering!
• TRMS measurement up to 1 kHz with digital display (12,000 digits) and analog scale
• Measurement of voltage and current, DC, AC and AC/DC, resistance, temperature, frequency, continuity/diodes
• Clip function for current measurement with current sensors
• Automatic measuring range selection and measured value storage
• Safety for the user and the instrument in measuring categories CAT IV up to 600 V and CAT III up to 1000 V

Applications

The multimeter is suitable for universal use in electrical engineering, electrical installation, laboratory applications, telecommunication, training etc.

Especially well suited for power utilities thanks to high impedance measurement inputs and the clip function for current sensors.

The instrument can be used in the field and is equipped with an internal, mains-independent power supply.
