Item number: M506A

Profitest Prime M506A

Testing the effectiveness of safety measures in electrical systems is necessary in many applications and is required in accordance with legislation and regulations set forth by official authorities, operating companies and insurance companies.
  • m506a-profitestprime_front_17036.jpg

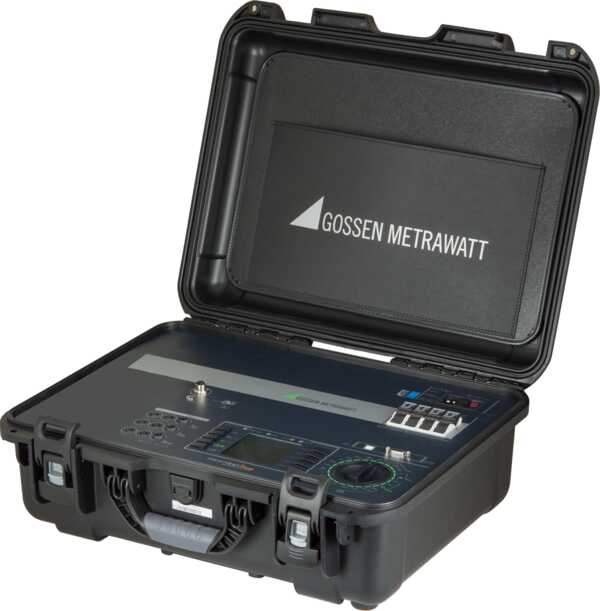

  • m506a-profitestprime_persp1_17038.jpg

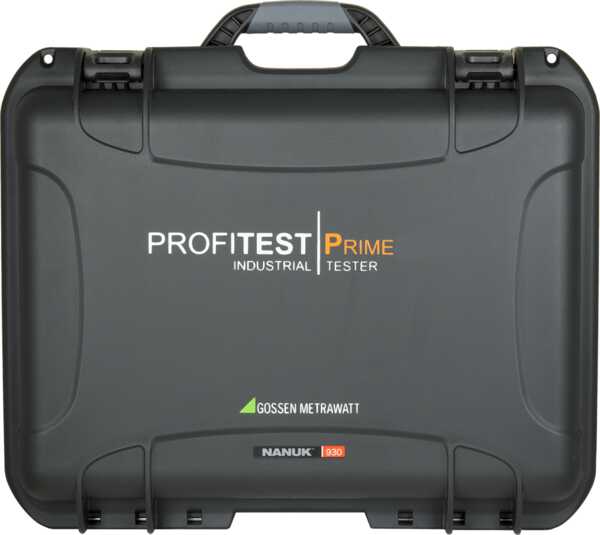

  • m506a-case_profitestprime_closed_front_16133.jpg

Testing the effectiveness of safety measures in electrical systems is necessary in many applications and is required in accordance with legislation and regulations set forth by official authorities, operating companies and insurance companies.

Product Highlights

Versatile and future-proof

  • Intuitive operation
  • Efficient work
  • Standards-compliant testing
  • Legally secure documentation

Saves time and money

  • As single test instrument for a broad range of applications
  • All measurements without any bothersome replugging of the measurement cables Interchangeable test tips on the measurement cables
  • Language genius – can be used all over the world

Up-to-date even in 10 years

  • Future-proof thanks to firmware updates
  • 10-year service guarantee
  • DAkkS certificate issued by own calibration laboratory
  • User support for questions about testing

Quick and easy report generation

  • Cascadable, future-proof software concept
  • Modern data management by means of customer and measurement data administration
  • Creation of system structures – from the system all the way down to the measuring points
  • Quick and easy generation of a legally secure report per ZVEH

Reliable measuring and testing

  • Easy operation with rotary switch
  • Predefined test sequences for structured testing
  • Coded plugs assure error-free testing
  • On-site help thanks to help function with wiring diagrams
  • Measuring category: 600 V CAT III / 300 V CAT IV
  • Technical characteristics
    A broad-range measuring device permits use of the test instrument in all alternating and 3-phase electrical systems with voltages from 65 to 690 V and frequencies of 15.4 to 420 Hz, as well as direct current systems with voltages from 65 to 800 V.
    • Voltage measurement up to 1000 V AC/DC
    • Low-resistance measurement for protective and equipotential bonding conductors with 200 mA
    • Insulation measurement up to 1000 V with rising ramp
    • Measurement of internal system resistance and fault loop resistance with high test current up to 690 V AC / 800 V DC without tripping RCD types A and B
    • Testing of tripping current and time to trip for RCCB types A, AC, F, B, B+, EV, MI and G/R, as well as SRCDs and PRCDs
    • Combined RCD test with continuously rising ramp, time to trip, tripping current
    • Testing of RCMs and IMDs
    • Measurement of leakage and differential current with the PROFICLIP current clamp
    • Measurement of temperature and humidity with a sensor
    • Mains and battery operation (with limited functionality)
    • Creation of individualized test sequences
    • Push-print function – transmission of the measured value via Bluetooth/USB after measurement has been completed
    • Bluetooth and USB interfaces
    • Windows-based user software with database functionality
  • Particularities
    Standards-compliant and safe – the PROFITEST PRIME series implements all measuring tasks safely and in compliance with the standards, and it makes testing quick and safe for electricians and other authorized persons in accordance with a variety­ of various application and product standards, for example:
    • DIN VDE 0100-600 / IEC 60364-6
    • DIN VDE 0105-100 / EN 50110-1
    • VDE 0113-1 / DIN EN 60204-1
    • VDE 0660-600-1/ DIN EN 61439-1
    • VDE 0126-23 / DIN EN 62446
    • VDE 0122-1 / DIN EN 61851-1
