Item number: M245A

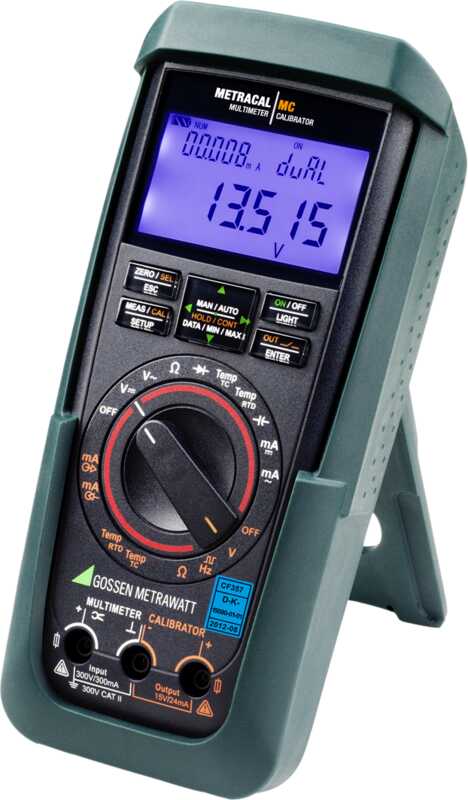

Universal Calibrator, Simulator and Multimeter

The new, compact multifunction process calibrator performance characteristics are emphasized by this calibrators ruggedness, simple handling, highest functionality, precision, and PC system ability.
  • m245a-metracalmc_front_09094a.jpg
  • m245a-metracalmc_persp1_09095a.jpg

The METRACAL MC rationalizes measuring, calibrating and revision work in the chemical process, laboratory and development, in the production area of electronic measurand transducers and at comparison and calibration of metrological components.

Product Highlights

  • Universal calibrator, simulator and multimeter, mA / mV... V / °C (Pt100/1000, Ni100/1000, thermocouples: J, L, T, U, K, E, S, R, B, N) / 30 ... 2000 O
  • Dual mode V simultaneous calibration and measurement (U / I)
  • Measuring and encoding in absolute terms and as percentage (scaled)
  • Memory for measurement results: 16 MBit
  • Frequency and pulse run generators: 1 Hz to 2 kHz
  • Ramp and staircase functions
  • METRAwin µ90-2 interface and calibration software
  • Transmitter simulator (sink: 0... 24 mA)
  • DAkkS calibration certificate included
  • Rugged, EMC compliant design
  • Precision multimeter (V, A, O, F, Hz, °C / F) 30,000 (60,000) digits and triple display
  • TRMS AC measurement to 20 kHz
