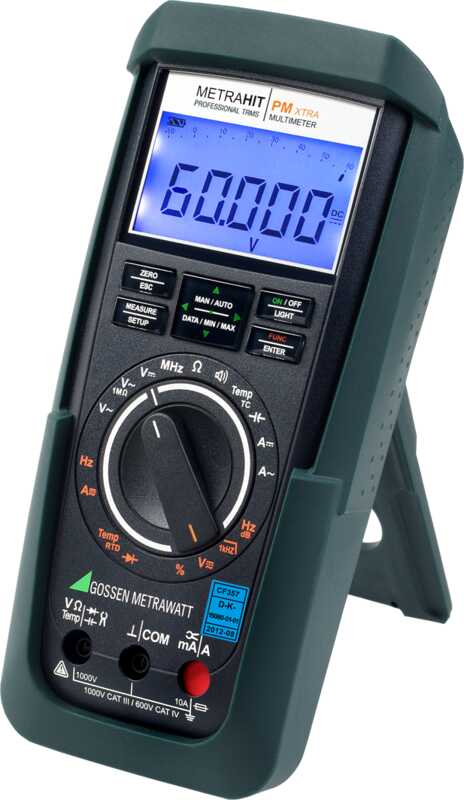

METRAHIT PM XTRA

• 26 multimeter functions
• Resolution: ±60,000 digits, 4 6/7-place
• Basic accuracy: ±0.05% (VDC)
• Voltage ACTRMS, voltage AC+DC TRMS, voltage DC, level dB, relative value ΔREL, frequency (Hz, MHz), duty cycle, resistance, diode testing, continuity test, capacitance, current ACTRMS, current AC+DCTRMS, temperature with Pt 100/1000 sensors and type K thermocouples
• Auto-ranging current measurement from 10 nA to 10 A (16 A) via a single connector jack and a single fuse
• Clip function for TRMS current measurement with sensors and transformers
• Additional filter function and voltage measurement with reduced input impedance for limiting interference, e.g. for measurements at frequency converters
• Automatic and manual measuring range selection
• Zero adjustment
• Automatic storage of measured values: DATA / MIN / MAX
• 2 MB data memory for 61,600 measured values for long-term measurements with data logger function
• Infrared interface for communication with the PC
• Large, light-blue illuminated display with extra-large characters (15 mm) and an analog bar graph for dynamic processes
• Separate battery and fuse compartments
• Power pack connector socket for operation without batteries
• Patented automatic blocking sockets (ABS)
• Measuring category: 600 V CAT IV, 1000 V CAT III
• Rubber holster for protection against shocks and impacts

Specific features of the EXTRA multimeter:

• 26 multimeter functions
• Data logger function with 2048 kB memory capacity, i.e. for up to 61,600 measured values
• Infrared interface to PC for data exchange and parameters configuration (optional: IR-USB adapter and METRAwin10 software)
• Power pack connector socket for operation without batteries
• TRMS AC and AC+DC voltage measurement, bandwidths of up to 100 kHz
• TRMS AC and AC+DC current measurement, bandwidths of up to 10 kHz
• dB measuring function
• Adjustable clamp factor for measurement with current clamp sensors and transformers

• METRAHIT EXTRA
• Order number M250A
• Number of multimeter functions 26
• Bandwidth (TRMS) 100 kHz
• Frequency measurement 1 MHz
• Current measurement
• Temperature measurement with Pt100(0)
• Low-pass filter (1 kHz)
• Broad range capacitance measurement
• Data memory (2048 kB)
• Mains connection
• Rubber holster

• 1 Metrahit PM XTRA multimeter in HC20 hard case
• 1 pair of safety measurement cables (1.5 m) with 4 mm test probes, 1000 V CAT III, 600 V CAT IV (KS17-2)
• 2 batteries, 1.5 V, type AA
• 1 condensed operating instructions, English/German
• 1 CD ROM, content: operating instructions in English and German
• 1 DAkkS calibration certificate (ISO 17025)1 protective rubber holster
