SYSKON P1500

Thank you

Item number: K353A

Programmable DC power supply – 500 W, 60 V, 30 A

SYSKON series instruments are fast, accurate, analog and digitally programmable DC power supplies, which are ideally suited for automated test sequences. In addition to diverse programming capabilities, the instruments offer outstanding output values with regard to speed, accuracy and residual ripple.

  • k353a-konst_syskonp1500_front_07200b.jpg

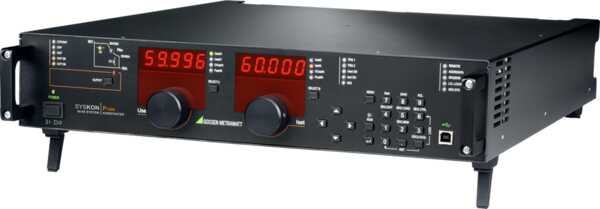

  • k353a-konst_syskonp1500_persp1_07203a.jpg

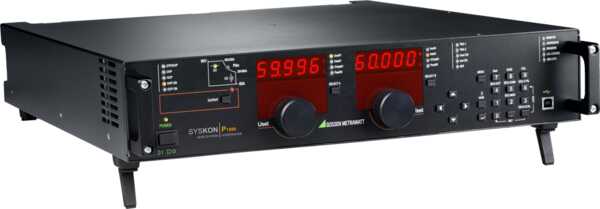

  • k353a-konst_syskonp1500_persp2_07202a.jpg

SYSKON P series KONSTANTERs cover nominal power ratings of 500, 800, 1500, 3000 and 4500 W with an output voltage of 60 V and nominal current of 180 A.

The broad-range mains input with sinusoidal current consumption makes use possible in countries with low line voltages.

The instruments feature excellent dynamic characteristics with regard to setpoint changes and sudden load changes. Setpoints can be changed automatically in a 1 ms pattern.

Product Highlights

  • 1700 sequence steps
  • Auto-range output
  • Read-in and read-out of all programmable parameters

Your advantages

  • DC power supplies for safety-relevant testing of electric and electronic components with a field instrument
  • Stable DC power output, programmable sequences and a read-out function for specified parameters ensure simple reproducibility and multiplication of the test sequences.
  • Digital and analog interfaces permit integration into test bays with commercially available or customer-specific control software – in-house developed software is available.

Applications

Endurance tests, climatic tests and stress tests in the fields of electric machinery, automotive, avionics, medical technology and semiconductors
  • Technical characteristics

    • Power output up to 500 W, 60 V, 30 A with characteristic auto-range curve
    • 1700 memory locations for sequences
    • 15 memory locations for basic settings
    • Digital interfaces: USB, RS 232 (onboard) and GPIB (optional), as well as an analog interface
    • Control software included
    • Sense terminals
    • Dynamic sink (continuous sink power: 65 W)
    • DAkkS calibration certificate as standard feature
    • Drivers for LabView are available
  • Particularities
    • Very short response times (2 ms)
    • Very high setting resolution (1 mV, 1 mA, 1 ms)
    • Digital documentation of measured values via connected computer
